  1. Quick Start Guide - UAE PASS Staging Environment

Conduct a POC with UAE PASS Authentication

PreviousTesting Credentials for POCNextAuthentication

Last updated 25 days ago

Was this helpful?

The following content provides you a step-by-step guide on conducting a simple POC with UAE PASS Authentication Feature using Postman.

Step 1

Set up Staging UAE PASS Account

Before you begin you must set up a UAE PASS staging account following the steps given in .

The account can be either basic or verified. UAE PASS Authentication feature will support SOP1, SOP2 and SOP3 user account types.

Step 2

Invoke the Authorization Request.

You can use following parameter values for POC purpose.

Authorize Endpoint=

Client_id= sandbox_stage

Scope = urn:uae:digitalid:profile:general

Redirect_uri= For this POC we are using https://localhost:8000.

acr_values= urn:safelayer:tws:policies:authentication:level:low

Sample Request

https://stg-id.uaepass.ae/idshub/authorize?response_type=code&client_id=sandbox_stage&scope=urn:uae:digitalid:profile:general&state=HnlHOJTkTb66Y5H&redirect_uri=https://localhost:8000&acr_values=urn:safelayer:tws:policies:authentication:level:low

Authorization request should be invoked in browser to obtain user authorization.

Once authorization request is invoked user will get the UAE PASS login page to authorize as follows.

Step 3

Enter the identifier of UAE PASS staging account (Email or Mobile or EID) and click on Login.

Once you click on Login button you will receive the UAE PASS authentication notification request to the UAE PASS Staging mobile app and a notification request with a specific code in the browser.

Step 4

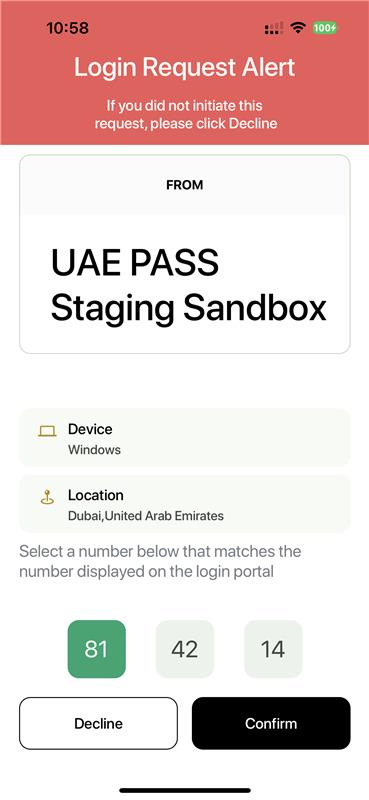

Select the correct code and confirm the notification request.

Step 5

Obtain Authorization Code

Once the user accepts the notification request, UAE PASS will issue the authorization code in the response header as shown in below example.

Sample Response

https://localhost:8080/code-bbc69-344553dc-3445fdscc-HnfgmsfsjjH

Step 6

Invoke the Access Token Request to obtain the access token.

You can use following values for the POC.

grant_type = authorization_code

redirect_uri = Redirect URL value used in the authorization request (Step 2).

code = Authorization code received in authorization response.

Authorization Header = Base64 encoded (client_ID : client_Secret)

Curl Request for Token API

curl --location --request POST 'https://stg-id.uaepass.ae/idshub/token?grant_type=authorization_code&redirect_uri=https%3A%2F%2Flocalhost%3A8080&code=bbc69c3b-561b-3cc6-a590-16a2bb8448ed' \
--header 'Authorization: Basic c2FuZGJveF9zdGFnZTpzYW5kYm94X3N0YWdl'

Token request should be a back-channel request and should use postman or as CURL during the POC to invoke the request.

Authorization code is one time usage value and will expire once used to obtain an access token. Expiry time will be 10 mins.

As success response you will receive an access token from UAE PASS as shown in below image.

Step 7

Invoke the User Info request to obtain the user details of the authenticated user.

You can use following values for the POC.

User info Endpoint = https://stg-id.uaepass.ae/idshub/userinfo

Bearer Token = Access token value received from access token response.

Curl Request for User Info API

curl --location 'https://stg-id.uaepass.ae/idshub/userinfo' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Authorization: Bearer 221fb1c8-deb7-3fca-b9f6-1d18281f2929'

User Info request should be a back-channel request and should use postman or Curl during the POC to invoke the request.

On success you will receive the user information of the authenticated user from UAE PASS.

You can download the postman collection for POC from below attachment.

Token End point =

https://docs.uaepass.ae/start-test-environment-implementation/create-uaepass-user
https://stg-id.uaepass.ae/idshub/authorize
https://stg-id.uaepass.ae/idshub/token
2KB
Authentication APIs Postman Collection V2.postman_collection.json

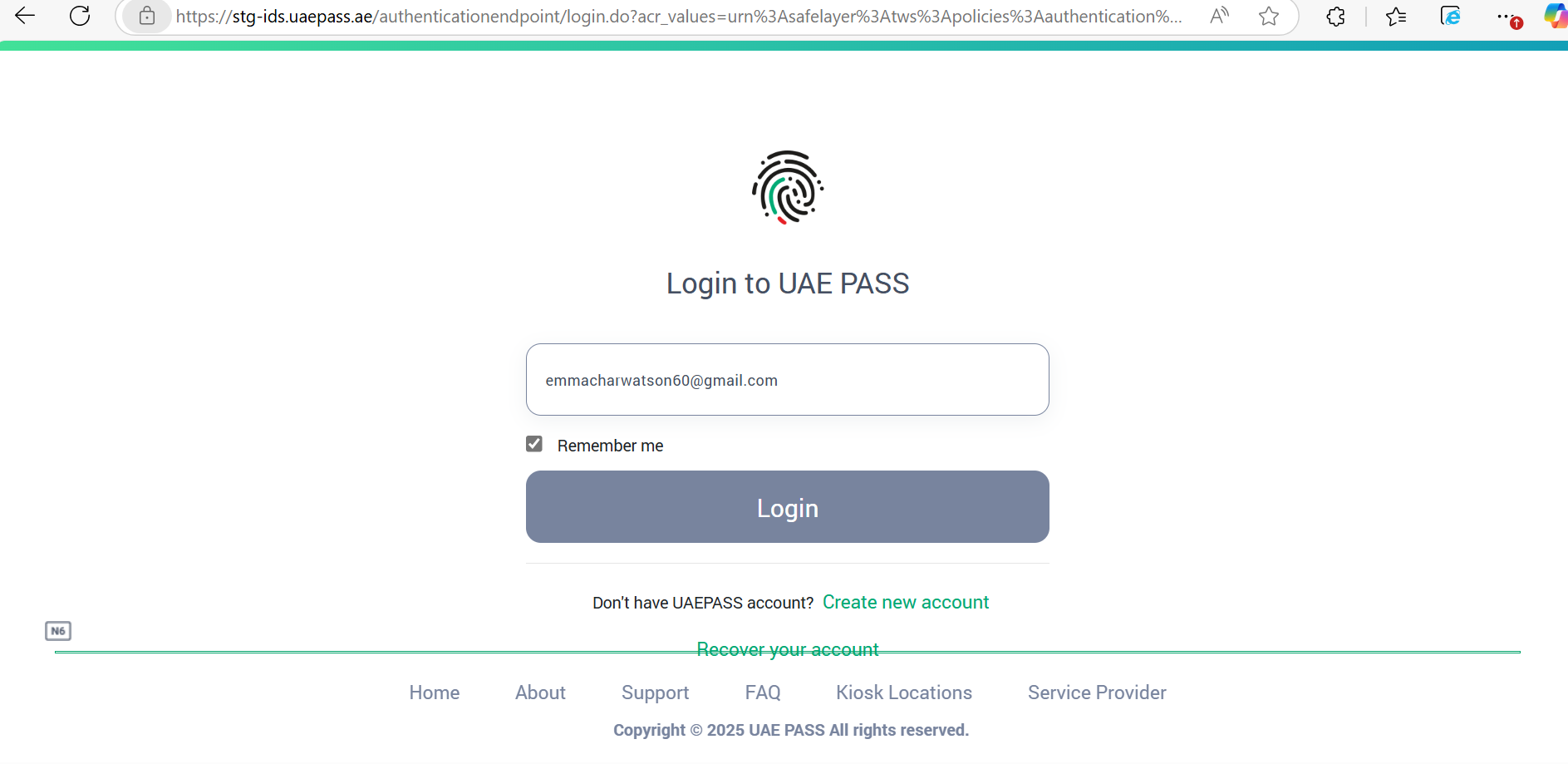

UAE PASS Login Page
Enter Identifier and Click Login

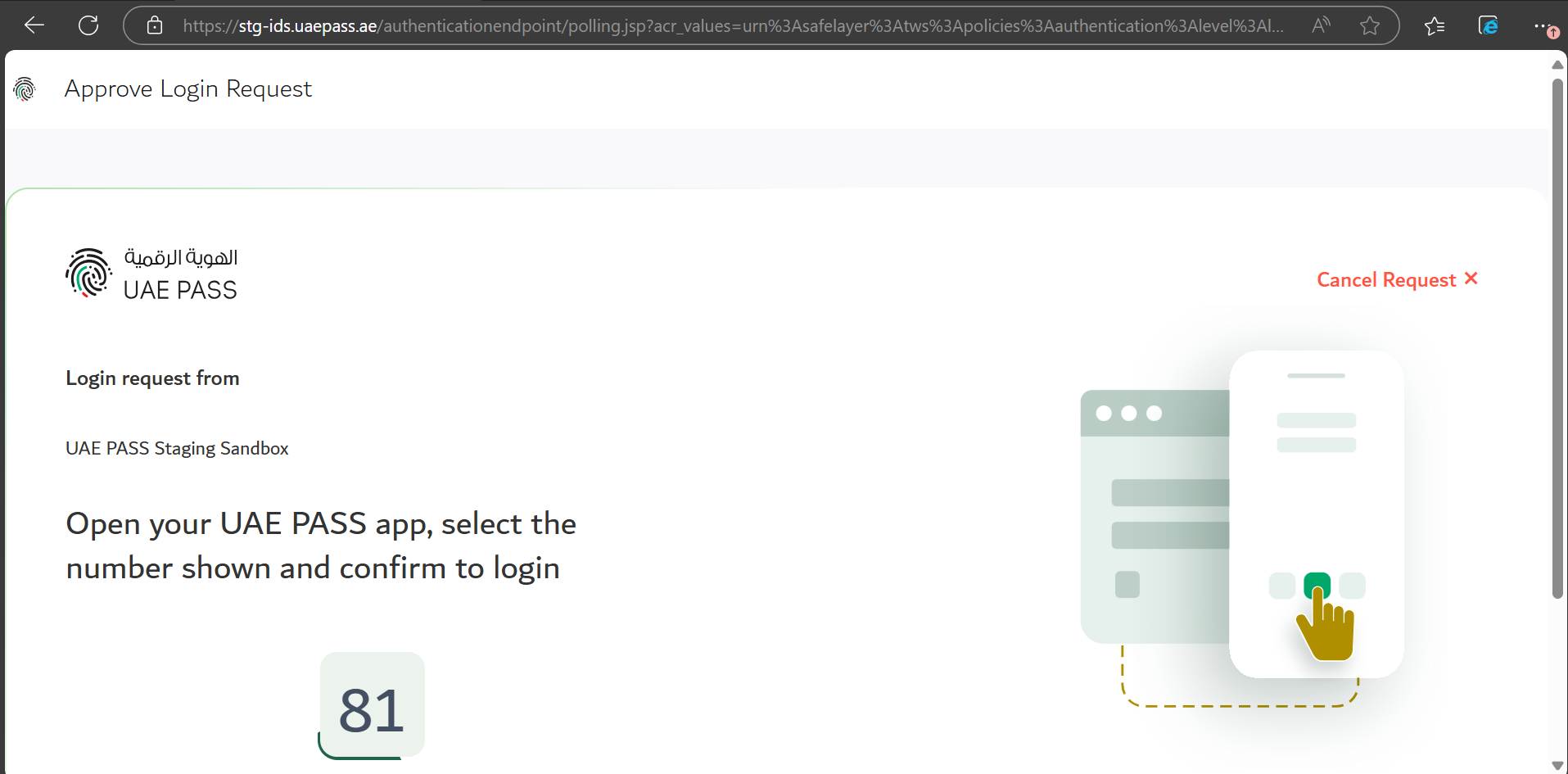

Match the Code with Notification Request in Mobile

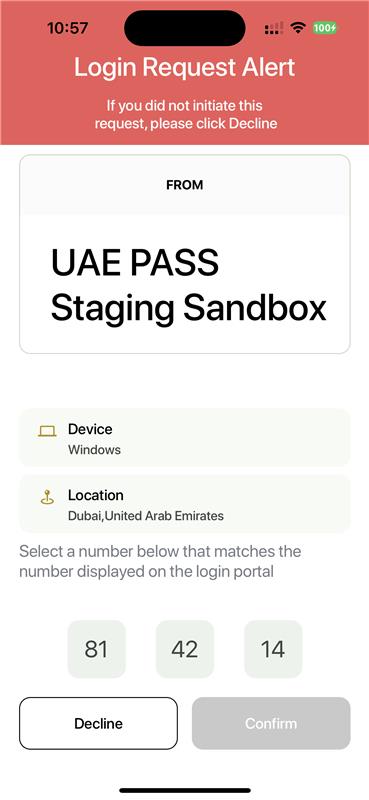

Mobile notification Screen
Authorization Response

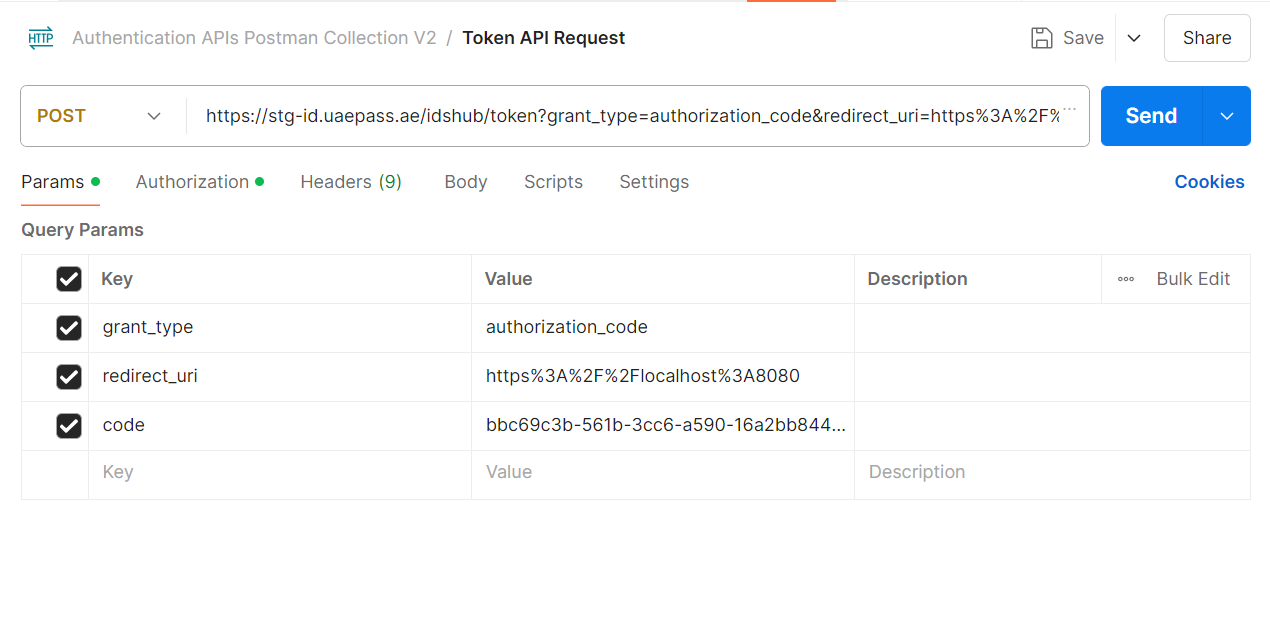

Token API request Parameters
Token API Authorization Header

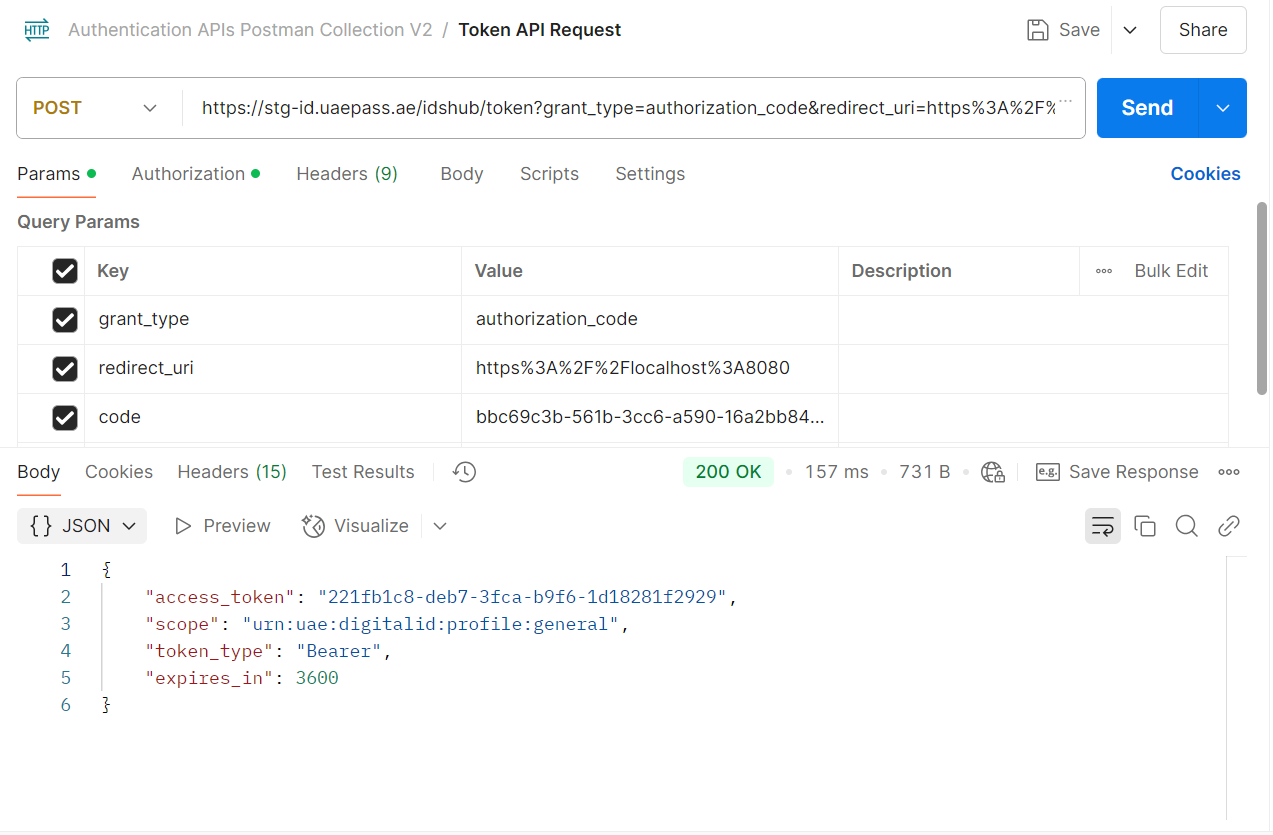

Token API response
User Info Request
User Info Response
